Custom Syntax Highlighting

Table of Contents

Background
#

I love Typst, it’s an awesome alternative to LaTeX for creating typeset documents! However, I recently ran into issues when writing a programming paper. I wanted to include code snippets in a programming language that Typst does not natively support. Meaning, the default language syntax highlighting support weren’t sufficient for me.

Typst supply a few primitive ways of loading custom syntax themes in raw code blocks, these are neither well-documented nor flexible. That’s why in this post, I’ll show you how to add support for custom Typst languages by creating syntax and themes definitions in a scalable manner!

`Raw` Code
#

In Typst, we can create code blocks using either ``` or the raw() text element, specifying the language, supported syntax, and theme as parameters.

raw(
    lang: nonestr,           -- e.g., "cpp", "python", "javascript"
    syntaxes: strbytesarray, -- e.g., "python.sublime-syntax"
    theme: noneautostrbytes, -- e.g., "halcyon.tmTheme"
    ...
) -> content

The syntaxes definitions should be in the .sublime-syntax file format.
The theme definitions should be in the .tmTheme file format. ¹²³

Naïve Approach
#

As you might realize, passing the file paths for syntax definitions and themes in every code block is tedious and error-prone. It simply doesn’t scale when you want to write a document with many code blocks in the same language. So, one might think: “Why not just set global defaults for the syntax and theme?” like so:

#set raw(
    syntaxes: "lento.sublime-syntax",
    theme: "lento.tmTheme",
)

However, this does not work as intended! Passing a custom syntax for all raw code blocks overrides all default language syntaxes! So all code blocks will use the same syntax, regardless of their lang parameter, breaking everything.

Adding Custom Syntax
#

Let’s start by creating a custom syntax definition for our new programming language, Lento. Start by creating a file named lento.sublime-syntax with similar content as below.²

lento.sublime-syntax source.

%YAML 1.2
---
# http://www.sublimetext.com/docs/3/syntax.html
name: Lento Lang
file_extensions:
  - lt
  - lento
scope: source.lento
variables:
  non_raw_ident: '[[:alpha:]][_[:alnum:]]*|_[_[:alnum:]]+'
  identifier: '(?:(?:(?:r\#)?{{non_raw_ident}})\b)'
  camel_ident: '\b_*[A-Z][a-zA-Z0-9_]*[a-z][a-zA-Z0-9_]*\b'
  escaped_char: '\\([nrt0\"''\\]|x[0-7]\h|u\{(?:\h_*){1,6}\})'
  int_suffixes: '[iu](?:1|8|16|32|64|128|size|big)'
  float_suffixes: 'f(32|64|big)'
  dec_literal: '[0-9](?:[0-9_])*'
  float_exponent: '[eE][+-]?[0-9_]*[0-9][0-9_]*'
contexts:
  main:
    - include: statements

  statements:
    - include: comments
    - include: strings
    - include: chars
    - include: basic-identifiers
    - include: numbers
    - include: symbols
    - include: keywords

    - match: '{{identifier}}'
    - match: '\.'
      scope: punctuation.accessor.dot.lento
    - match: ';'
      scope: punctuation.terminator.lento
    - match: '(''(?:{{non_raw_ident}}))\s*(:)'
      captures:
        1: entity.name.label.lento
        2: punctuation.separator.lento
    - match: '\b({{identifier}})\s*(=)\s*(?=\|)'
      captures:
        1: entity.name.function.lento
        2: keyword.operator.assignment.lento
    - match: '\b(fn)\s+(?={{identifier}})'
      captures:
        1: storage.type.function.lento
      push: fn-definition
    - match: '\bstruct\b'
      scope: storage.type.struct.lento
      push: struct-identifier
    - match: '\b(type)\s+({{identifier}})\b'
      captures:
        1: keyword.control.lento
        2: entity.name.type.lento
      push:
      - match: '=(?!=)'
        scope: keyword.operator.assignment.lento
        push: after-operator
      - match: '(?=\S)'
        pop: true

  type:
    - match: \b(Self|{{int_suffixes}}|{{float_suffixes}}|bool|char|str)\b
      scope: storage.type.lento
    - match: uint|int|float|num # union types
      scope: storage.type.lento

  bool:
    - match: \b(true|false)\b
      scope: constant.language.lento

  # More contexts like strings, comments, numbers, keywords, etc. go here...

This is just an example and will not work out of the box. But it should give you a good starting point for defining the syntax of your new language.

This definition is based on the RustEnhanced⁴ Sublime syntax.

Theming
#

Next, if we want to have nice colors for our new language, we need to create a custom theme file. Create a file named lento.tmTheme with content similar to below.³

lento.tmTheme source.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple Computer//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
    <dict>
        <key>name</key>
        <string>Lento</string>
        <key>settings</key>
        <array>
            <dict>
                <key>settings</key>
                <dict>
                    <key>background</key>
                    <string>#261633</string>
                    <key>caret</key>
                    <string>#F8F8F0</string>
                    <key>foreground</key>
                    <string>#E7E7E7</string>
                    <key>invisibles</key>
                    <string>#1E2D13</string>
                    <key>lineHighlight</key>
                    <string>#29421A</string>
                    <key>selection</key>
                    <string>#3E6328</string>
                </dict>
            </dict>
            <dict>
                <key>name</key>
                <string>Keyword</string>
                <key>scope</key>
                <string>keyword, keyword.operator</string>
                <key>settings</key>
                <dict>
                    <key>foreground</key>
                    <string>#d73948</string>
                </dict>
            </dict>
            <dict>
                <key>name</key>
                <string>Comment</string>
                <key>scope</key>
                <string>comment</string>
                <key>settings</key>
                <dict>
                    <key>foreground</key>
                    <string>#74747c</string>
                </dict>
            </dict>
            <dict>
                <key>name</key>
                <string>Storage type</string>
                <key>scope</key>
                <string>storage.type</string>
                <key>settings</key>
                <dict>
                    <key>fontStyle</key>
                    <string>bold</string>
                    <key>foreground</key>
                    <string>#418FDF</string>
                </dict>
            </dict>
            <dict>
                <key>name</key>
                <string>Function name</string>
                <key>scope</key>
                <string>entity.name.type</string>
                <key>settings</key>
                <dict>
                    <key>fontStyle</key>
                    <string>bold</string>
                    <key>foreground</key>
                    <string>#4b69c6</string>
                </dict>
            </dict>
        </array>
    </dict>
</plist>

This theme is based on the popular Halcyon Color Scheme⁵ for Sublime Text. But with modifications such that is matches the style of the default Typst code theme.⁶

Putting It All Together
#

We want to add global support for our new language, so we don’t have to specify the syntax and theme file paths in every code block. However, we only want to do this for raw code blocks that specify our new language in their lang parameter. To achieve this, we can use Typst’s show directive⁷ in combination with the where selector⁸ to override the syntaxes and theme parameters conditionally. ⁹¹

#show raw.where(lang: "lento").or(raw.where(lang: "lt")): set raw(
    syntaxes: "lento.sublime-syntax",
    theme: "lento.tmTheme",
)

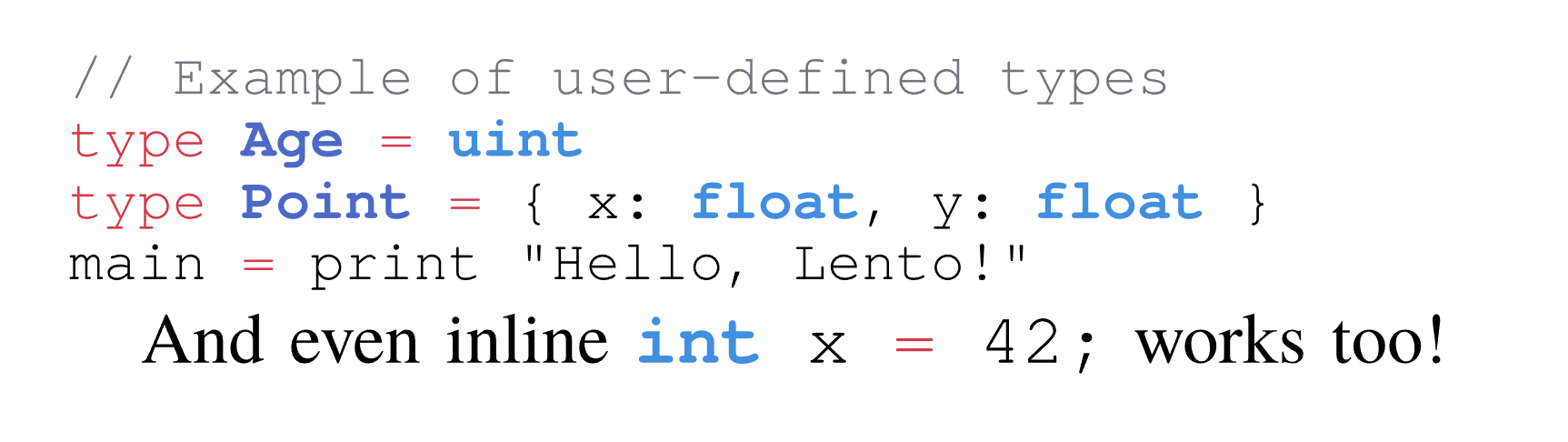

And we even added an lt alias for our language via the or operator! Now any code blocks with lang: "lento" or lang: "lt" will work!

```lento
// Example of user-defined types
type Age = uint
type Point = { x: float, y: float }
main = print "Hello, Lento!"
```

And even inline ```lt int x = 42;``` works too!

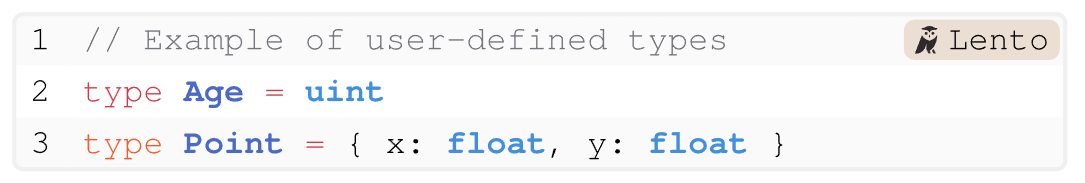

Improve your code snippets with packages like Codly¹⁰ for even nicer styling!

Conclusion
#

This implementation of custom languages improves on a previously hacky process to a stable and scalable process. We’ve managed to add Lento language support via sublime-syntax and tmTheme definitions, demonstrating the power of Typst’s scripting capabilities!
